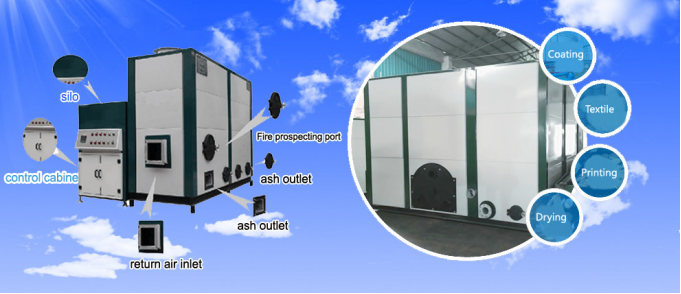

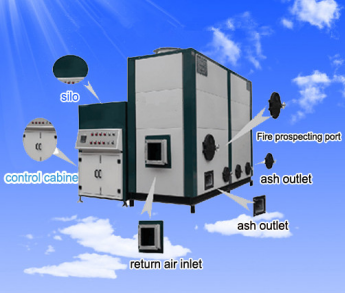

Hot Air Generator

Hot Air Generator

Product Description :

  • Moisture-Free Hot Air Output
    Wood powered Hot Air Generator is a ground breaking & advanced technology that supplies moisture-free hot air.
  • Clean & Efficient Combustion
    A closed loop mechanism ensures no smoke and minimal ash (85% less ash than conventional wood burning).
  • High Heat Generation at Lower Cost
    The heat generation capacity is multiplied by our innovative technology, delivering required hot air at an economical operating cost.
  • Environment Friendly Design
    No separate chimneys are required for treating flue gas, as only Carbon Dioxide and Nitrogen are released. Unlike conventional wood or gas systems, this unit does not emit Carbon Monoxide.
Get Quote
🚚 Delivery via VRL Transport
🛒 Order Placed
🚚 Shipping to VRL
🏢 Nearest VRL Branch
📦 Customer Pickup
Note: Collect the product from the nearest VRL Transport branch. Delivery charges are payable at the branch.
View full details
  • Wood gasification combustion technology—Fuel burnout rate is over 98.5%.
  • Save cost up to 30–80% compared with traditional products.
  • Heat conversion efficiency is over 70%.
  • Wood as fuel—low-carbon, no sulfur and nitrogen emissions.
  • No smoke and minimal ash (85% less ash).
  • No need of chimneys to treat exhaust flue gases.
  • Designed according to boiler standards and tested by pressure, efficiency, stability and certified inspection.
  • Free from inspection.
  • Compact structure with installation support.
  • User-friendly ignition, feeding and ash removal.
  • Wood gasification combustion technology—Fuel burnout rate is over 98.5%.
  • Save cost up to 30–80% compared with traditional products.
  • Heat conversion efficiency is over 70%.
  • Wood as fuel—low-carbon, no sulfur and nitrogen emissions.
  • No smoke and minimal ash (85% less ash).
  • No need of chimneys to treat exhaust flue gases.
  • Designed according to boiler standards and tested by pressure, efficiency, stability and certified inspection.
  • Free from inspection.
  • Compact structure with installation support.
  • User-friendly ignition, feeding and ash removal.

Clean And Lean Burn Technology

Process of Gasification

  • Wood Gasifier system involves subjecting the wood pieces placed on the burning chamber for pyrolysis.

  • This generates producer gas which is burnt immediately at the upper periphery of the chamber through tiny apertures.
  • Thus, dry wood which has a lower calorific value (heat generation potential) can be made effective and its calorific value increased by augmenting with a gasification system.
  • In conventional wood burning, ash content is 13–16%, whereas by deploying Wood Gasifier system, generation of ash is less than 2% due to complete and efficient combustion of wood. There are no residues of carbon particles or charcoal.
Wood Gasification Process Diagram

Need for our Product

Need for our Product

Producer Gas (Before Combustion)

Producer Gas (After Combustion)

Schematic of Hot Air Generator

Need for our Product

Economics

Total Savings Potential

  • 40% saving in running expense (Low wood consumption)
  • Rate of drying is quicker since only dry air is used. So, required drying operation can be achieved at a lower temperature (Quicker cycle time) (15% saving)
  • No requirement of Pressurized steam. So elimination of FD fan (5% saving)

Applications

  1. Bakery (Ovens & Friers)
  2. Chemical Industry
  3. Dairy & Food Processing
  4. Edible Oil Manufacturing
  5. Egg Baking
  6. Mango Pulp
  7. Paddy Drier
  8. Paper Mills
  9. Pharma Industry
  10. Rubber Industry
  11. Tannery
  12. Tea Drier
  13. Textile Industry
